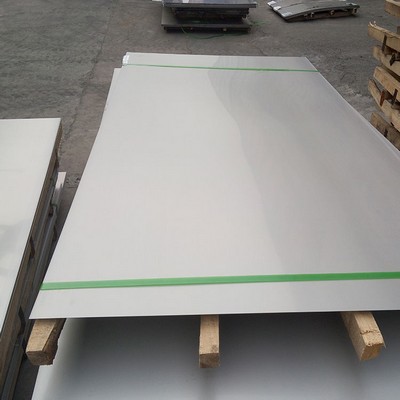

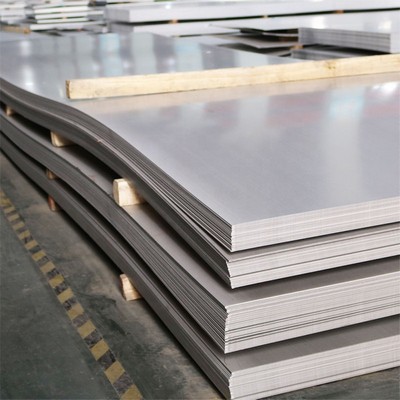

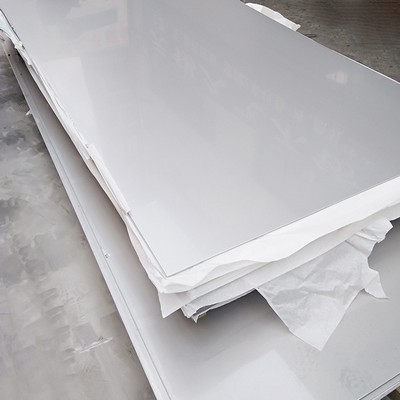

Hastelloy plate is a nickel-based corrosion-resistant alloy, mainly divided into two categories: nickel-chromium alloy and nickel-chromium-molybdenum alloy. Hastelloy plate has good corrosion resistance and thermal stability, and is mostly used in aviation, chemical fields, etc. Hastelloy plates are suitable for various chemical industries containing oxidizing and reducing media. The higher molybdenum and chromium content makes the alloy resistant to chloride ion corrosion
1. Extremely high corrosion resistance: Hastelloy plate material contains alloy elements such as chromium and molybdenum, which has extremely high corrosion resistance and can even prevent corrosion by chemical substances such as chloride ions. This is also one of the reasons why Hastelloy pipes are widely used in petroleum, chemical industry and other fields.2. High pressure resistance, safe and reliable: The unique material structure of Hastelloy plate gives it high strength and toughness. Even in high temperature and high pressure environments, the nickel-based alloy can maintain its stable performance and is not easy to deform and break. It has good shock resistance and vibration resistance.3. Good processability and plasticity: Hastelloy pipe has a smooth surface and no burrs and other defects on the inner wall. It is easy to process and install. It can also be processed by cold bending, flaring, shrinking, etc., which can meet the needs of different occasions.| Item | Inconel 600 | Inconel 601 | Inconel 617 | Inconel 625 | Inconel 690 | Inconel 718 | Inconel x750 | Inconel 825 |
| C | ≤0.15 | ≤0.1 | 0.05-0.15 | ≤0.08 | ≤0.05 | ≤0.08 | ≤0.08 | ≤0.05 |
| Mn | ≤1 | ≤1.5 | ≤0.5 | ≤0.35 | ≤0.5 | ≤0.35 | ≤1 | ≤1 |
| Fe | 6-10 | rest | ≤3 | rest | 7-11 | rest | 5-9 | ≥22 |
| P | ≤0.015 | ≤0.02 | ≤0.015 | -- | -- | -- | -- | -- |
| S | ≤0.015 | ≤0.015 | ≤0.015 | ≤0.015 | ≤0.015 | ≤0.01 | ≤0.01 | ≤0.03 |
| Si | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.35 | ≤0.5 | ≤0.35 | ≤0.5 | ≤0.5 |
| Cu | ≤0.5 | ≤1 | -- | ≤0.3 | ≤0.5 | ≤0.3 | ≤0.5 | 1.5-3 |
| Ni | ≥7.2 | 58-63 | ≥44.5 | 50-55 | ≥58 | 50-55 | ≥70 | 38-46 |
| Co | -- | -- | 45214 | ≤10 | -- | ≤1 | ≤1 | -- |
| Al | -- | 1-1.7 | 0.8-1.5 | ≤0.8 | -- | 0.2-0.8 | 0.4-1 | ≤0.2 |
| Ti | -- | -- | ≤0.6 | ≤1.15 | -- | -- | 2.25-2.75 | 0.6-1.2 |
| Cr | 14-17 | 21-25 | 20-24 | 17-21 | 27-31 | 17-21 | 14-17 | 19.5-23.5 |
| Nb+Ta | -- | -- | -- | 4.75-5.5 | -- | 4.75-5.5 | 0.7-1.2 | -- |
| Mo | -- | -- | 45148 | 2.8-3.3 | -- | 2.8-3.3 | -- | 2.5-3.5 |
| B | -- | -- | ≤0.006 | -- | -- | -- | -- | -- |
Alloy state | Tensile strength Rm N/mm² | Yield strength R P0. 2N/mm² | Elongation |
C276 | 690 | 283 | 40 |
Product Name | hastelloy plate/sheet |
Standard | DIN GB ISO JIS AISI ASTM |
Grade | Hastelloy: hastelloyB3/B2/X/C/C22/C276/G-30 |
Thickness | Hot rolled: 3.0mm-180mm |
Widthness | 8-3000mm |
Standard | ASME, ASTM, EN, BS, GB, DIN, JIS etc |
Used | building industry machinery |
Package | Standard export seaworthy package,or as required. |
