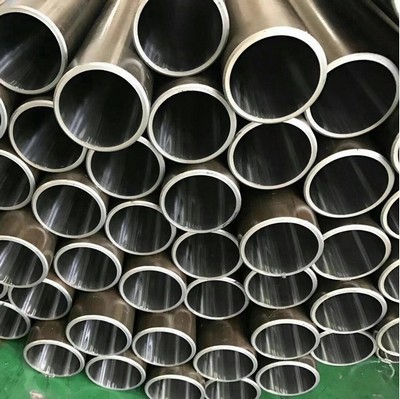

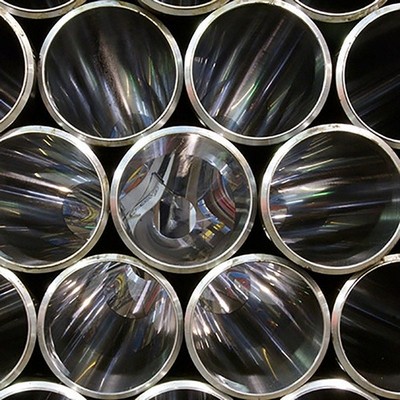

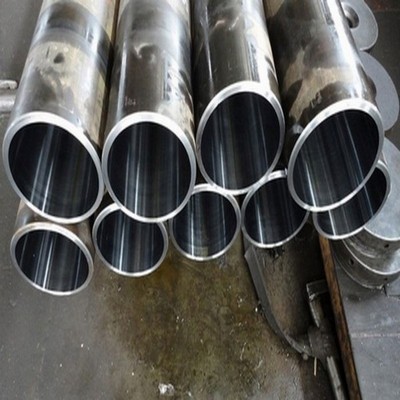

honed cylinder tube is a kind of high precision steel tube material after cold drawing or hot rolling. Because the inner and outer walls of the quilted cylinder tube have no oxide layer, withstand high pressure without leakage, high precision, high finish, cold bending without deformation, flaring, flattening without cracks and other points, it is mainly used for the production of pneumatic or hydraulic components, such as cylinder or cylinder, can be seamless pipe. The chemical composition of the quilted cylinder tube is carbon C, silicon Si, manganese Mn, sulfur S, phosphorus P, chromium Cr.
1. High precision tolerances, our honing tubes can meet ID tolerances H7, H8, H9, etc. according to customer requirements2. Only seamless cold drawn tubes are used to produce honing tubes, which means our honing tubes can work at higher pressures and are more reliable for hydraulic cylinder applications.3. Highly smooth inner surface, the roughness of our honing tube is maximum Ra 0.4um.| Speci -cation | Grade | Chemical Composition [%] | ||||||||||||||
| C | Mn | P | S | Si | Cr | Mo | Cu | Ni | V | |||||||
| Min | Max. | Min | Max. | Max. | Max. | Min. | Max | Min. | Max | Min. | Max | Max | Max | Max | ||
| ASTM A-53 | A | - | 0.25 | - | 0.95 | 0.05 | 0.045 | - | - | - | 0.4 | - | 0.15 | 0.40 for S | 0.4 | 0.08 |
| B | - | 0.3 | - | 1.2 | 0.05 | 0.045 | - | - | - | 0.4 | - | 0.15 | 0.40 for S | 0.4 | 0.08 | |
| ASTM A-106 | A | - | 0.25 | 0.27 | 0.93 | 0.035 | 0.035 | 0.1 | - | - | 0.4 | - | 0.15 | 0.4 | 0.4 | 0.08 |
| B | - | 0.3 | 0.29 | 1.06 | 0.035 | 0.035 | 0.1 | - | - | 0.4 | - | 0.15 | 0.4 | - | 0.08 | |
| c | - | 0.35 | 0.29 | 1.06 | 0.035 | 0.035 | 0.1 | - | - | 0.4 | - | 0.15 | 0.4 | 0.08 | ||
| ASTM A333 & A334 | 1 | - | 0.3 | 0.4 | 1.06 | 0.025 | 0.025 | - | - | - | - | - | - | - | - | - |
| 6 | - | 0.3 | 0.29 | 1.06 | 0.025 | 0.025 | 0.1 | - | - | - | - | - | - | - | - | |
| Speci -cation | Grade | Mechanical Properties | |||||
| Yield Strength | Tensile Strength | % Elongation (G.L. 50 mm WT 8 mm) e (min.) | |||||
| Min. | Min. | ||||||
| PSI | MPa | PSI | MPa | ||||
| ASTM A-53 | A | 30,000 | 205 | 48,000 | 330 | e=625000 A02/U09 | |
| B | 35,000 | 240 | 60,000 | 415 | |||
| ASTM A-106 | A | 30,000 | 205 | 48,000 | 330 | 35L / 25T | |
| B | 35,000 | 240 | 60,000 | 415 | 30L / 16.5T | ||
| c | 40,000 | 275 | 70,000 | 485 | 30L / 16.5T | ||
| ASTM A333 & A334 | 1 | 30,000 | 205 | 55,000 | 380 | 35 | |
| 6 | 35,000 | 240 | 60,000 | 415 | 30 | ||
Type | honed cylinder tube | |
Materials | API 5L /A53 /A106 GRADE B and other material which client inquired | |
Size | Outer Diameter | Seamless:17-914mm 3/8"-36" |
Wall Thickness | SCH10 SCH20 SCH30 STD SCH40 SCH60 XS SCH80 | |
Length | Single random length/Double random length | |
Ends | Plain end/Beveled,protected by plastic caps on both ends, cut quare,grooved,threaded and coupling,etc. | |
Surface Treatment | Bare,Painting black,varnished,galvanized,anti-corrosion 3PE PP/EP/FBE coating | |
Technical Methods | Hot-rolled/Cold-rolled/Hot-expanded | |
Testing Methods | Pressure test,Flaw detection,Eddy current testing, Hydro static testing or Ultrasonic examination and also with chemical and | |
Packaging | Small pipes in bundles with strong steel strips,large pieces in loose; Covered with plastic woven | |
Origin | China | |
Application | Conveying oil gas and water | |
Third Party Inspection | SGS BV MTC | |
Trade Terms | FOB CIF CFR | |
Payment Terms | FOB 30%T/T,70% before shipment | |
MOQ | 1 ton | |
Supply Capacity | 5000 T/M | |
Delivery Time | Usually within 10-45 days after receipt of advance payment | |
