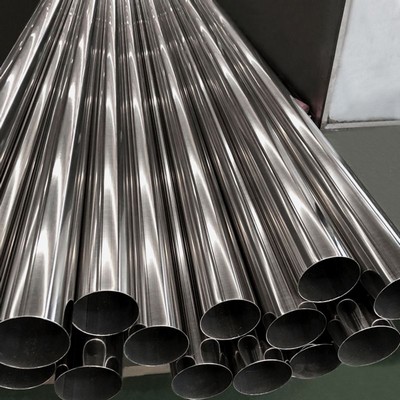

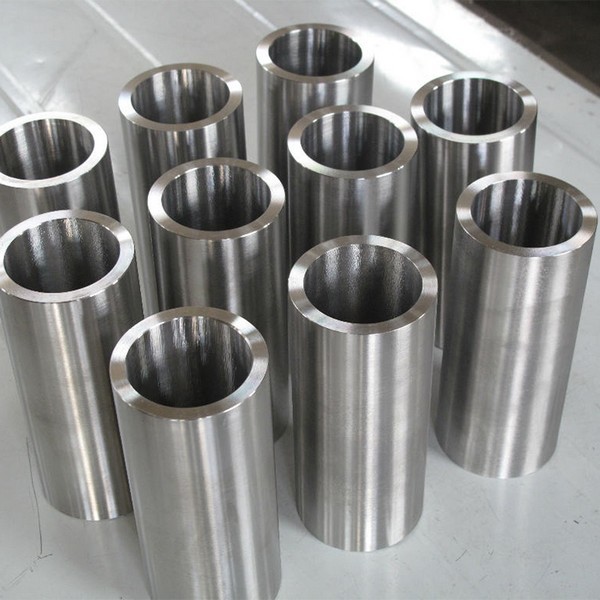

317L stainless steel pipe, also known as UNS S31703 and Grade 317L SS pipe, it is a low carbon high grade stainless steel pipe, with a good corrosion resistance and machine work performance. Compare to 317L, 317 stainless steel has a higher carbon content, it means that 317 stainless steel has a better heat resistance. 317 Stainless Steel is an austenitic stainless steel which contains molybdenum. This grade has improved corrosion resistance over 304/304L and 316/316L.317 stainless steel is the most widely used chrome-nickel stainless steel, has good corrosion resistance, heat resistance, low temperature strength and mechanical properties.
1. Good corrosion resistance: The main alloy elements of 317 stainless steel are chromium, nickel and molybdenum, which makes it have excellent corrosion resistance and is especially suitable for use in strong acid, strong alkali and high temperature environments.2. Excellent mechanical properties: 317 stainless steel has high tensile strength and yield strength, high elongation, high hardness and impact toughness, and can still maintain stable performance in high temperature environments.3. Easy to process and weld: 317 stainless steel can be processed and deformed through a variety of methods, such as cold processing, hot processing, deep drawing, etc. In addition, it can be connected by conventional welding methods, such as argon arc welding, resistance welding, laser welding, etc.4. High temperature strength: 317 stainless steel can still maintain high strength and stable performance in high temperature environments, which makes it widely used in high temperature fields.| Carbon | Silicon | Sulfur | Phosphorus | Chromium | Molybdenum | Manganese | Nickel | Nitrogen |
| 0.030 | 0.75 | 0.030 | 0.045 | 18.0-20.0 | 3.0-4.0 | 2.00 | 11.0-15.0 | 0.10 |
| Yield Strengtd 0.2% Offset | Ultimate Tensile Strength | Elongation in 2 in. | Hardness | ||
| psi (min.) | (MPa) | psi (min.) | (MPa) | % (min.) | (max.) |
| 30,000 | 205 | 75,000 | 515 | 40 | 95 Rockwell B |
Material | RONSCO,BAOSTEEL, JISCO, TISCO, Etc. |
Outer Diameter | OD 6mm-630mm or customized |
Thickness | 0.4-30mm or customized |
Model Number | 201.202.301.302.304.304L.309S.310S.316.316L.316Ti.321.317.410.430.630. |
Standard | GB, AISI, ASTM, ASME, EN, BS, DIN, JIS |
Surface | Black,Bright,2B,BA,NO.1,Hairline,Mirror |
Application | Decoration, construction and upholstery, etc |
Package | Each tube in a plastic bag with size label outside and pack in small bundles |
Delivery Time | 5-7workdays for one FCL Or according to order list detail |
Payment | T/T,L/C, |
Sample | we could offer the sample for free charge but do not pay the cost of freight. |
